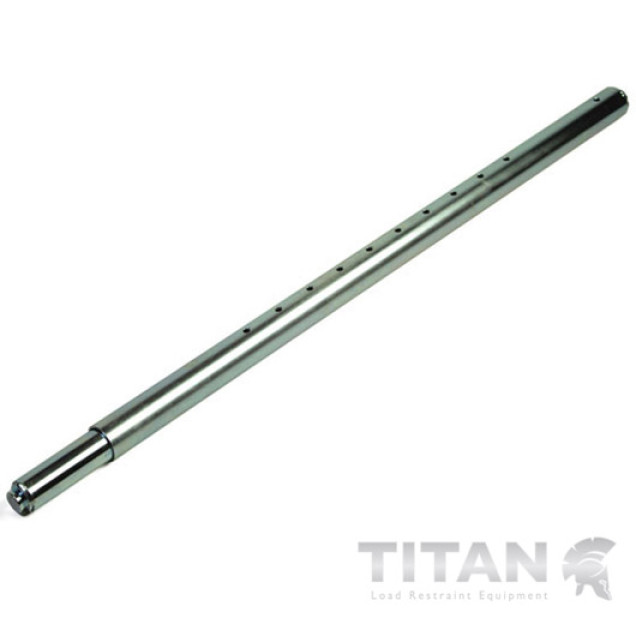

The Heavy Duty Round Steel Spring Loaded Shoring Bar (2.5m to 2.9m) is engineered for secure, dependable load restraint in HGVs, articulated trailers, and commercial vehicles fitted with anchor track systems. Built from high-strength steel, this robust shoring pole delivers consistent performance in demanding transport and logistics environments.
With an adjustable working range of 2500mm to 2900mm, this bar is ideal for larger vehicle bodies. It can be installed both vertically and horizontally, allowing flexible load control—whether you're separating freight, stabilising pallets, or preventing load shift during transit.
Manufactured from a durable 44mm diameter steel tube, this shoring bar provides superior rigidity and strength. The integrated spring-loaded ends offer 50mm of compression, enabling quick installation while maintaining constant pressure against the vehicle walls for secure positioning.
Fitted with end pegs compatible with 25mm round hole anchor track systems, the bar ensures a firm and reliable connection. It supports an ultimate load capacity of 460kg (evenly distributed), making it suitable for a wide range of professional haulage applications.
Uses
-
Securing palletised goods in HGVs and trailers
-
Preventing load movement during transit
-
Creating partitions within vehicle bodies
-
Stabilising mixed or part-load consignments
-
Supporting logistics and multi-drop delivery operations
Key Benefits
-
Heavy Duty Construction: Built from high-grade steel for long-term durability
-
Adjustable Fit: Covers 2.5m to 2.9m for large vehicle bodies
-
Versatile Application: Suitable for both vertical and horizontal use
-
Quick Installation: Spring-loaded ends for fast and secure positioning
-
Enhanced Strength: 44mm tube diameter increases rigidity
-
Secure Compatibility: Designed for 25mm round hole anchor track
-
Reliable Performance: 460kg evenly distributed load capacity
Industries
-
Transport & Haulage
-
Logistics & Distribution
-
Warehousing
-
Retail Delivery Networks
-
Freight & Pallet Distribution
-
Removal & Storage Companies
Important Measurement Information
Always measure the internal track face to track face distance before purchase. This must fall within the adjustable range of 2500mm to 2900mm to ensure safe and correct operation.
Simple Length Adjustment
The bar features multiple adjustment holes along its length:
-
Remove the split pin using a hammer and punch or screwdriver
-
Slide the bar to the required length
-
Reinsert the split pin securely before use
FAQs
Q: What vehicles is this shoring bar suitable for?
A: It is designed for HGVs, articulated trailers, and large commercial vehicles fitted with 25mm anchor track systems.
Q: Can the bar be used vertically and horizontally?
A: Yes, it is suitable for both orientations depending on your load securing requirements.
Q: What is the maximum load capacity?
A: The bar has an ultimate load capacity of 460kg when evenly distributed across its length.
Q: Will it fit all trailers?
A: No—always measure your internal track width. It must be between 2.5m and 2.9m.
Q: Can I use this bar for hanging garments?
A: No, the 44mm diameter is too wide for standard coat hangers. Garment rails are recommended for that purpose.
Q: Does the anchor track affect performance?
A: Yes, load performance depends on the strength and correct installation of the anchor track and vehicle body.
