Spring loaded shoring bars

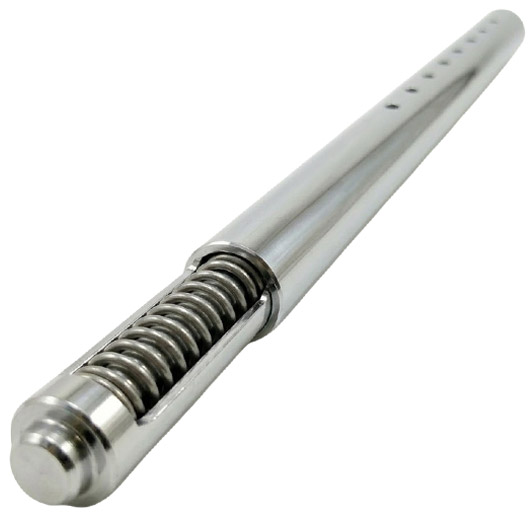

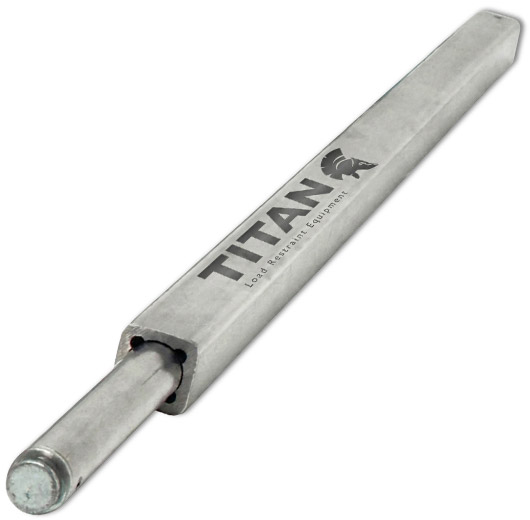

They are used within fixed body vehicles and trailers fitted with standard 25mm hole tracks. The two main designs for shoring bars are round and square, but both are made with an adjustable range of about 400mm. This means they can be adjusted to fit various fixed body vehicles. The bars are easily located between the internal tracks and secured firmly in place to prevent loads moving around in transit. This can prevent load damage and danger to drivers and other road users when on the move.

The spring loaded design means that they can provide secure travel even if fixed body walls flex, making them especially durable and tough for moving large or heavy objects. Spring loaded shoring bars come in a variety of lengths to suit almost any size of vehicle. These sizes include 0.9 to 1.3 metres, 1.3 to 1.7 metres, 1.7 to 2.1 metres, 2.1 to 2.5 metres and the largest size of 2.5 to 2.9 metres. So, as you can see, spring loaded shoring bars are very versatile.

The length of the bars extend from the face of the track on one side to the face on the other, and be safely secured in the 25mm peg holes, while still retaining some spring loaded action in case of flex.

The shoring bars should be used when transporting any loads in vehicles, either secured to the vehicle sides or using the 25mm hole tracks. They are secured in place to prevent moving or falling, causing damage to the goods or persons moving them. It is very important that you ensure all bars are secured before setting off so that loads are not able to move around.

As well as the size of your vehicle determining the size of the shoring bars that you need, you also need to know the weight of the load that you’re transporting. This is so you can determine the force of the load when in transit and use an appropriate number of shoring bars.

The safe working load limit, known as the WLL, for any shoring bar is 460 kg. This weight is spread evenly along the bar. So, once you have determined the weight of your load, you need to make sure you have a greater amount of securing capacity than weight in order for a secure transportation. It’s always a good idea to use shoring bars in pairs, whenever they are used, for additional security.

Reduce risk, ensure the safety of cargo and cut the cost of damaged loads by using a selection of spring loaded shoring bars from Titan Load Restraints.

Why Choose Steel Spring Loaded Shoring Bars for Commercial Load Security?

Steel spring loaded shoring bars are one of the most reliable and cost-effective cargo restraint systems available for commercial vehicles. Whether transporting palletised goods, machinery, retail products, parcels or fragile freight, spring loaded shoring poles provide a fast, adjustable and reusable method of preventing load movement during transport.

Manufactured from high-strength steel and engineered for demanding transport environments, spring loaded shoring bars are widely used throughout the logistics, haulage, courier, warehouse distribution and commercial vehicle industries. Their adjustable telescopic design allows them to fit a wide range of box vans, rigid trucks and fixed body trailers fitted with standard 25mm load lock tracks.

Unlike straps alone, steel shoring bars create a rigid physical barrier that prevents loads from sliding forwards, backwards or sideways during braking, cornering or acceleration. This not only helps protect valuable cargo from damage but also improves driver safety and assists operators in complying with load restraint best practices.

Key Benefits of Spring Loaded Shoring Bars

• Heavy duty high-strength steel construction
• Adjustable telescopic design for multiple vehicle widths
• Quick and simple installation without specialist tools
• Compatible with standard 25mm hole load lock tracks
• Spring loaded mechanism compensates for vehicle body flex
• Suitable for vans, rigid trucks, box bodies and trailers
• Reduces cargo movement and product damage
• Helps improve transport safety and operational efficiency
• Reusable and long service life with minimal maintenance
• Ideal for professional haulage and fleet operators

When combined with other load restraint equipment including ratchet straps, load restraint bars, cargo nets, decking beams and internal load lock systems, spring loaded shoring bars provide an extremely effective cargo securing solution for almost every commercial transport application.

Industries That Commonly Use Spring Loaded Shoring Bars

• General haulage and logistics
• Retail distribution
• Parcel and courier delivery
• Food and beverage transport
• Pharmaceutical distribution
• Manufacturing
• Automotive parts distribution
• Furniture removals
• Warehouse operations
• Construction materials transport
• Third-party logistics (3PL)
• Fleet operators and commercial vehicle hire

Frequently Asked Questions

What is a spring loaded shoring bar?

A spring loaded shoring bar is an adjustable steel load restraint bar designed to prevent cargo moving inside vans, rigid trucks and fixed body trailers. It locks securely into standard 25mm hole internal tracking using spring tension to create a strong cargo barrier.

What is the difference between a spring loaded shoring bar and a load lock bar?

The terms are often used interchangeably. Spring loaded shoring bars, load lock bars, cargo bars and spring loaded shoring poles all refer to adjustable load restraint devices used to secure cargo inside commercial vehicles.

Are spring loaded shoring bars adjustable?

Yes. Most models offer approximately 400mm of adjustment by removing the split pin extending or shortening and reinserting the split pin allowing a single bar to fit multiple vehicle widths while maintaining constant spring pressure (Please check the width of your vehicle before ordering to check you have the correct size bar).

What vehicles are spring loaded shoring bars suitable for?

They are suitable for:

• Box vans
• Luton vans
• Rigid trucks
• Fixed body HGVs
• Curtainsiders with internal tracks
• Commercial trailers fitted with 25mm hole tracking

How many shoring bars should I use?

The number required depends on the weight, dimensions and distribution of the load. As a general guide, using two or more bars provides greater load stability than a single restraint. Always ensure the total load restraint capacity exceeds the forces generated during transport.

What is the Working Load Limit (WLL)?

The standard Working Load Limit (WLL) for many spring loaded shoring bars is 460kg when the load is evenly distributed across the bar. Always check the specification before use.

Can spring loaded shoring bars be used with ratchet straps?

Yes. Many operators use spring loaded shoring bars alongside ratchet straps to create a comprehensive cargo securing system for maximum safety.

Are steel spring loaded shoring bars reusable?

Absolutely. Zinc-plated steel spring loaded shoring bars are designed for repeated daily commercial use and provide many years of reliable service when properly maintained.

Why are spring loaded shoring bars important?

Load movement is one of the leading causes of damaged goods and transport incidents. Properly installed spring loaded shoring bars help reduce cargo movement, minimise damage, improve driver safety and protect other road users while ensuring more efficient deliveries.

Looking for High Quality Spring Loaded Shoring Bars?

Titan Load Restraints supplies a comprehensive range of premium steel spring loaded shoring bars, spring loaded shoring poles and commercial load restraint equipment suitable for vans, trucks and trailers. Available in multiple adjustable sizes, our products are manufactured for demanding commercial use and help businesses transport goods safely, securely and efficiently throughout the UK.
